Comprehensive Expanding File Size Guide: Dimensions, Sheet Formats, and Structural Engineering
An expanding file size guide provides exact internal clear pocket dimensions, gusset expansion depths, tab clearances, and closure allowances engineered to accommodate regional paper standards—primarily US Letter (8.5 × 11 in), A4 (210 × 297 mm), and Foolscap (8.5 × 13.5 in). Defining these technical parameters prevents document binding, maintains tab visibility, supports structural integrity under full capacity, and streamlines global production tooling.
How Do Regional Sheet Formats Determine Internal Clear Dimensions for Expanding Files?
When engineering an expanding document organizer, the starting point is the physical footprint of the paper it is designed to hold. Standard document formats vary significantly across global regions, which means an organizer designed strictly for North America will not properly house European or British Commonwealth documentation.
To ensure sheets slide in and out smoothly without snagging or crumpling edges, engineers apply standard manufacturing tolerances to create the internal clear dimension. Internal clear dimension refers to the usable space between ultrasonic weld seams, stitched edge bindings, or fold creases inside each pocket.
US Letter Format (North America): Standard letter sheets measure 8.5 × 11.0 inches (215.9 × 279.4 mm). The required minimum internal pocket clearance is 9.0 × 11.5 inches (228.6 × 292.1 mm), with an outer shell footprint typically measuring 9.5 × 13.0 inches (241.3 × 330.2 mm).
ISO A4 Format (Europe, International, Latin America): Standard A4 sheets measure 8.27 × 11.69 inches (210 × 297 mm). Because A4 is taller and narrower than US Letter, internal pocket clearance requires at least 8.75 × 12.20 inches (222.3 × 309.9 mm), resulting in an outer shell size of approximately 9.45 × 13.19 inches (240 × 335 mm).
Foolscap / Legal Formats (UK, Australia, Legal Practices): Traditional Foolscap measures 8.5 × 13.5 inches (215.9 × 342.9 mm), while US Legal measures 8.5 × 14.0 inches (215.9 × 355.6 mm). A foolscap expanding file folder demands an internal clear dimension of 9.0 × 14.25 inches (228.6 × 362.0 mm) and an outer footprint of 10.0 × 15.0 inches (254 × 381 mm).
The technical comparison table below illustrates standard regional sheet metrics and their corresponding accordion file dimensions:
Document Standard | Sheet Dimensions (Width × Height) | Minimum Clear Pocket Size | Typical Exterior Shell Size | Target Distribution Region |
|---|---|---|---|---|
:--- | :--- | :--- | :--- | :--- |
US Letter | 8.50 × 11.00 in (216 × 279 mm) | 9.00 × 11.50 in (229 × 292 mm) | 9.50 × 13.00 in (241 × 330 mm) | USA, Canada, Mexico |
ISO A4 | 8.27 × 11.69 in (210 × 297 mm) | 8.75 × 12.20 in (222 × 310 mm) | 9.45 × 13.19 in (240 × 335 mm) | Europe, Asia, Latin America |
Foolscap (UK) | 8.50 × 13.50 in (216 × 343 mm) | 9.00 × 14.00 in (229 × 356 mm) | 9.84 × 14.76 in (250 × 375 mm) | UK, Australia, Commonwealth |
US Legal | 8.50 × 14.00 in (216 × 356 mm) | 9.00 × 14.50 in (229 × 368 mm) | 10.00 × 15.25 in (254 × 387 mm) | North American Legal Sector |
Universal SKU | Multi-Fit (Letter & A4) | 9.15 × 12.25 in (232 × 311 mm) | 9.75 × 13.25 in (248 × 337 mm) | Global Cross-Border Retail |
Calculating internal clear pocket tolerances prevents document binding across regional paper standards.
How Does Gusset Geometry and Pocket Count Dictate File Expansion and Load Distribution?
The structural performance of an expanding file depends heavily on gusset engineering. The gusset is the pleated or accordion-style sidewall and base that expands as documents fill the internal compartments. Sizing gussets requires calculating sheet capacity, paper grammage, and pocket count to ensure the file maintains its balance without flaring awkwardly or splitting at stress points.
A single sheet of standard 80 gsm woodfree office paper has an average caliper thickness of 0.10 mm. When evaluating accordion file dimensions, engineers must account for both sheet volume and divider substrate thickness.
6-Pocket / 5-Divider Configurations: Designed for weekly organizing, project workflows, or bill management. These typically incorporate a total gusset depth of 1.0 to 1.5 inches (25.4 to 38.1 mm) when fully expanded, supporting approximately 250 to 300 sheets.
12-to-13-Pocket Configurations: Standardized for 12-month filing, monthly tax tracking, or subject separation. These feature a maximum base expansion of 2.0 to 2.5 inches (50.8 to 63.5 mm), holding between 600 and 900 sheets.
24-to-31-Pocket Configurations: Utilized for daily archiving, alphanumeric indexing, or large case files. These require a heavy-duty wide-track bottom gusset expanding from 3.5 to 5.0 inches (88.9 to 127.0 mm), supporting up to 1,500 sheets.
Two primary gusset geometries exist in industrial production:
V-Cut Gusset (Tapered): Expands broadly at the top opening while remaining narrow or closed at the base. This format is ideal for desk trays and portable briefcase organizers where rapid top-access indexing is prioritized over massive volume.
U-Cut / Flat-Bottom Gusset (Full-Track): Expands equally across the top, sides, and bottom panels. This geometry allows the file folder to stand upright on flat surfaces without tipping over, evenly distributing weight across the base.
Selecting the correct gusset geometry prevents bottom seam stress fractures, reduces hinge fatigue, and ensures the organizer maintains an aesthetically clean profile when loaded to maximum design threshold.
What Are the Critical Specifications for Tab Height, Index Clearance, and Ergonomic Visibility?
Index tabs are fundamental to expanding organizer utility. If tab heights and header clearances are calculated incorrectly, filed papers will obscure the tab labels, defeating the file's primary indexing purpose.
When comparing an a4 vs letter expanding file, vertical height clearance must be tailored to ensure tab exposure. In professional file construction, the divider panel must extend at least 0.50 to 0.75 inches (12.7 to 19.0 mm) above the top edge of the inserted document. The tab extension itself typically rises an additional 0.35 to 0.50 inches (8.9 to 12.7 mm) above the divider edge.
Tab Cut Fractions: Tab layouts are engineered in standard step fractions across the width of the folder:
1/3-Cut Tabs: Three staggered positions across the top edge; optimal for high-visibility category naming in 6-pocket formats.
1/6-Cut Tabs: Six staggered positions; suitable for bi-monthly or subject categorization.
1/12-Cut / 1/13-Cut Tabs: Twelve to thirteen positions; standardized for annual monthly systems (Jan–Dec) or A–Z indexing.
Index Label Window Sizing: Clear welded polypropylene tab windows typically feature an internal insert opening of 1.50 × 0.40 inches (38.1 × 10.2 mm) for 1/12 cuts, or 2.75 × 0.50 inches (69.8 × 12.7 mm) for 1/3 cuts. Pre-printed or blank cardstock inserts must be cut 0.05 inches smaller than the clear window pocket to allow easy insertion while preventing slippage.
Cover Header Clearance: The outer flap and cover of the expanding file must provide a minimum vertical clearance of 0.75 inches (19.0 mm) beyond the top of the tab extensions. Insufficient top clearance causes the outer flap to crush the indexing tabs when the closure is secured under full paper capacity.
Precision tab height and multi-score flap hinges ensure clear visibility and smooth closure under full capacity.
How Should Closures, Elastic Bands, and Flap Lengths Be Engineered for Full-Load Expansion?
A common structural flaw in low-specification document organizers is closure failure when the unit is filled to capacity. When pockets fill, the front and back covers push apart laterally, requiring the flap and closure mechanism to dynamically adapt.
Engineers must calculate flap wrap-around geometry and closure point positioning based on empty versus fully expanded depths:
Flap Crease Geometry (Multi-Score Hinges): Premium expanding files incorporate 2 to 4 parallel pre-creased score lines along the top spine and flap hinge. These score lines allow the cover to fold cleanly at 0.5-inch, 1.0-inch, 1.5-inch, or 2.0-inch depths depending on document volume, preventing flap warping.
Elastic Cord Closures: Elastic loop closures utilize woven latex or polyester braided shock cords (typically 1.8 mm to 2.5 mm diameter). The cord is anchored to the rear panel with reinforced metal eyelets. The front panel features a molded plastic or metal button. Cord tension must be calibrated between 3.5 N and 6.0 N to maintain closure without bowing the cover inwards when empty.
Tuck-In Flaps vs. Hook-and-Loop Fasteners: Tuck-in tongue flaps require precision die-cut locking slots. Hook-and-loop (Velcro) closures require elongated loop strips (measuring 1.5 to 2.0 inches vertically) paired with a standard hook patch. This allows variable closure positioning along the vertical axis as the folder expands.
Twist-Lock and Plastic Clasp Mechanisms: Rigid molded polyacetal (POM) push-button clasps or turn-locks offer premium tactile security. In custom expanding file manufacturing, female clasp components are positioned with calculated vertical drop offsets (typically 10 mm to 15 mm lower than the relaxed flap edge) to ensure positive mechanical engagement when the file spine expands to maximum payload.
Which Material Substrates Provide the Best Structural Durability for Expanding Files?
Material selection dictates structural rigidity, edge-tear resistance, water resistance, environmental footprint, and manufacturing cost. Commercial expanding files utilize three primary material categories:
1. Polypropylene (PP) Sheet
Extruded virgin or post-consumer recycled (rPP) sheet is the dominant material in modern office filing products due to its hinge endurance and resistance to moisture.
Cover Thickness: Typically specified between 0.55 mm and 1.00 mm (550 to 1000 microns). Heavy-duty files utilize 0.75 mm+ covers to maintain flat structural integrity.
Internal Divider Thickness: 0.15 mm to 0.20 mm (150 to 200 microns) offers optimal flexibility, allowing smooth page insertion without adding excessive dead weight.
Gusset Thickness: 0.12 mm to 0.18 mm frosted or textured PP provides thousands of flex cycles without stress cracking along crease lines.
2. Rigid Paperboard and Heavyweight Kraft
Eco-conscious and traditional executive environments rely on paper-based construction.
Cover Substrates: 1.5 mm to 2.5 mm greyboard wrapped in FSC-certified art paper, coated kraft, or specialty buckram book cloth. Edge perimeters can be reinforced with stitched fabric webbing or turned-edge paper wrapping.
Internal Gussets: Mylar-reinforced red rope paper or heavy 120–180 gsm kraft paper lined with cloth tape along the gusset valley folds to prevent tearing at high-friction corners.
3. Fabric Composites and Thermoformed EVA
High-end portable organizers integrate 300D to 600D polyester fabric laminated over rigid polyethylene (PE) sheets or molded EVA cores. These feature continuous nylon coil zippers (#5 or #8 zipper tracks) wrapping three sides, providing 360-degree document containment and drop protection.
Substrate Category | Typical Gauge / Weight | Tensile & Hinge Durability | Moisture & Stain Resistance | Sustainability Profile |
|---|---|---|---|---|
:--- | :--- | :--- | :--- | :--- |
Polypropylene (PP) | Covers: 0.6–0.9 mm; Dividers: 0.15–0.18 mm | High (over 10,000 continuous hinge flexes) | Fully waterproof & washable | Recyclable (Code 5); rPP available |
Rigid Bound Greyboard | 1200–1800 gsm board + 128 gsm wrapper | Medium (requires reinforced paper hinges) | Low to Medium (requires lamination) | High (FSC-traceable, biodegradable core) |
Reinforced Kraft / Red Rope | 150–250 gsm heavy kraft + Mylar crown | Medium-High (resistant to edge fraying) | Low (absorbent unless poly-coated) | High (recyclable paper streams) |
Polyester Fabric / EVA | 600D Polyester + 2 mm EVA Foam | Extreme (abrasion and impact resistant) | High (water-repellent DWR coatings) | Medium (composite material recycling) |
Should Brands Choose Universal Tooling or Region-Specific Tooling for Global File Distribution?
Brands and retailers distributing across multiple international territories face a supply-chain dilemma: invest in separate tooling for US Letter, A4, and Foolscap formats, or engineer a single universal SKU.
The Region-Specific Strategy
Producing distinct regional SKUs maximizes ergonomic fit and shelf appeal in targeted retail channels. A dedicated US Letter folder saves approximately 8% to 12% in raw material consumption compared to an A4 or Foolscap unit. In domestic North American retail, consumers prefer compact folders that fit neatly into standard desk drawers and briefcases without surplus vertical clearance. However, this strategy requires maintaining segregated inventory, managing distinct UPC barcodes, and investing in multiple high-frequency welding die sets.
The Universal Hybrid Strategy
A single universal tooling platform sizes the internal clear pocket to accommodate the maximum dimensions of both primary standards: 9.15 inches wide (housing US Letter width) by 12.25 inches high (housing A4 height). An outer shell measuring 9.75 × 13.25 inches (248 × 337 mm) successfully holds both A4 and US Letter documents without creasing.
Advantages: Cuts tooling and injection mold costs by 50%, streamlines master carton packing specs, consolidates SKUs for global Amazon FBA distribution, and allows larger aggregate manufacturing runs for lower unit costs.
Trade-Offs: Slightly oversized for standard US Letter sheets, resulting in approximately 0.7 inches of unoccupied internal vertical space when loaded solely with North American formats.
For most cross-border e-commerce brands, creator-led product lines, and multinational stationery distributors, universal sizing offers the lowest landed total cost and lowest inventory obsolescence risk.
Lion Paper's dual-site manufacturing network combines agile prototyping in Jiaxing with scalable mass production in Cambodia.
How Does Lion Paper Optimize Custom Expanding File Manufacturing, Load Testing, and Packaging?
Transforming an initial product sketch into a high-yield, retail-ready filing product requires disciplined supply-chain coordination, precise structural engineering, and automated production. Founded in 2015 with headquarters in Jiaxing, Zhejiang, Lion Paper Products (Jiaxing) Co., Ltd. serves as an end-to-end supply-chain partner for customized paper goods, filing products, and creative office collections.

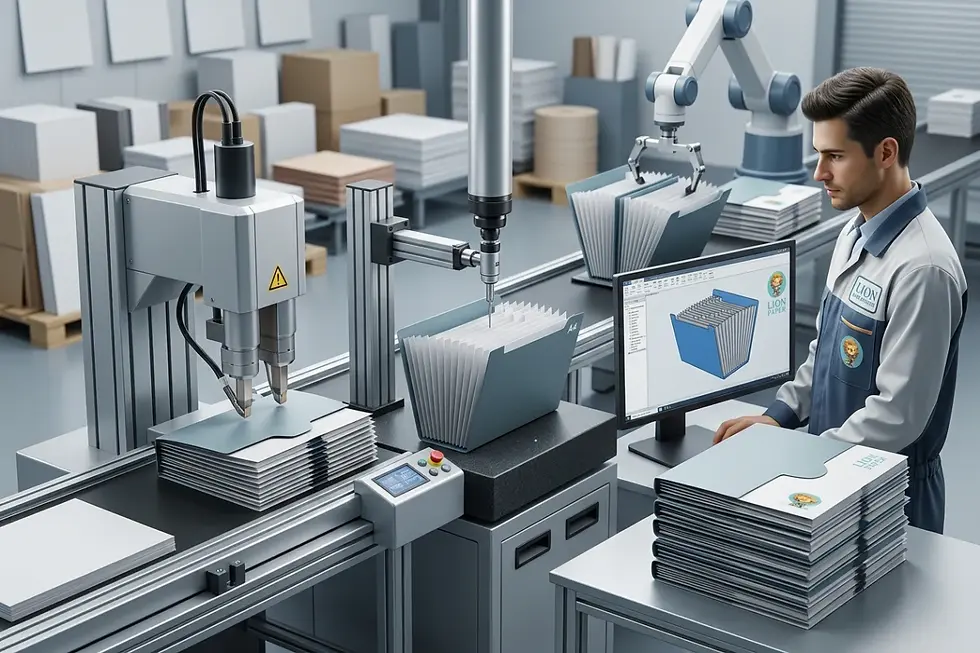

Lion Paper operates a unique dual-site manufacturing network designed to balance design innovation with mass-production cost efficiency:
Jiaxing Facility (3,000 m²): Serves as the centralized engineering, structural design, rapid prototyping, and customer support hub. In-house designers and sampling engineers refine pocket tolerances, develop custom tab tooling, and deliver physical prototypes in rapid turnaround cycles.
Cambodia Facility (10,000 m²): Purpose-built for large-scale mass manufacturing, automated assembly, and cost-optimized global exports. Automated ultrasonic welding lines, precision die-cutting equipment, and standardized SOPs ensure consistent quality across production volumes exceeding millions of units annually.
Rigorous Quality Assurance and Load Testing Protocols
To guarantee that expanding files survive demanding distribution and everyday consumer use, Lion Paper enforces comprehensive quality control standards aligned with ISO 9001, FSC, SMETA, WCA, GSV, FAMA, and CPSIA frameworks:
Dynamic Expansion and Hinge Fatigue Testing: Automated cycle testers flex folder covers, spine hinges, and pocket dividers through 5,000 continuous open-close cycles to verify zero seam separation or micro-cracking.
Handle and Seam Load-Bearing Stress Tests: Loaded expanding briefcases and file wallets undergo static hanging weight tests (up to 5.0 kg / 11 lbs for 24 hours) and dynamic jerk tests to ensure ultrasonic welds and rivet anchors do not fail.
Tab Retention and Insertion Verification: Visual inspection and automated gauges verify that index tabs adhere strictly to ±0.5 mm tolerances, preventing loose label inserts or tight window binding.
Packaging Optimization and Drop Testing: Lion Paper engineers develop custom master carton packaging, corrugated inner tuck boxes, and retail-ready PDQ displays. Master shippers undergo ISTA 1A drop testing and pallet compression simulations to eliminate transit damage and optimize container fill rates for North American, European, and Australian ocean freight.
Whether developing private label filing systems, seasonal stationery collections, or compliant e-commerce packaging, Lion Paper integrates design-to-manufacturing support from the initial concept to global delivery.
To begin engineering your custom organizational product line, share your required document dimensions, pocket count, substrate preferences, closure mechanisms, and target capacity with our engineering team to request an expanding-file prototype and load-test plan today.
Frequently Asked Questions
What is the exact difference between A4 and US Letter accordion file dimensions?
US Letter expanding files prioritize width over height, featuring clear pocket dimensions around 9.00 × 11.50 inches (229 × 292 mm). In contrast, A4 expanding files prioritize height over width, requiring pocket dimensions of at least 8.75 × 12.20 inches (222 × 310 mm). Inserting an A4 sheet into a standard US Letter folder will cause the top 0.69 inches (17.5 mm) of the sheet to stick out and cover the indexing tabs. A universal expanding file spans at least 9.15 × 12.25 inches to accommodate both standards.
Can a foolscap expanding file folder hold standard legal size documents?
A standard Foolscap expanding file folder measures approximately 9.84 × 14.76 inches externally and holds 8.5 × 13.5-inch sheets. US Legal documents measure 8.5 × 14.0 inches (0.5 inches longer than Foolscap). While many flexible Foolscap accordion files can accommodate US Legal sheets, dedicated US Legal folders should provide an internal pocket clearance of at least 14.25 to 14.50 inches to prevent edge bending and ensure flap closures latch properly.
What polypropylene thickness is recommended for a retail-grade expanding file?
For commercial retail-ready expanding files, outer covers typically use 0.65 mm to 0.80 mm polypropylene sheet for structural rigidity and shelf presence. Internal pocket dividers are engineered with 0.15 mm to 0.18 mm PP to keep the organizer lightweight and flexible. Gusset sidewalls perform best at 0.12 mm to 0.15 mm thickness to allow smooth accordion folding without stiff resistance or hinge fatigue.
How does Lion Paper ensure batch-to-batch consistency in custom expanding file manufacturing?
Lion Paper enforces standardized SOP work cards, strict AQL sampling inspection standards, and defect mapping across its Jiaxing and Cambodia manufacturing facilities. Ultrasonic welding temperatures, pressure dwell times, die-cutting blade sharpness, and material thicknesses are calibrated before every production run. All products undergo physical load testing, drop testing, and carton stacking validation prior to container loading.
FAQ
What is the exact difference between A4 and US Letter accordion file dimensions?
US Letter expanding files prioritize width over height, featuring clear pocket dimensions around 9.00 × 11.50 inches (229 × 292 mm). In contrast, A4 expanding files prioritize height over width, requiring pocket dimensions of at least 8.75 × 12.20 inches (222 × 310 mm). Inserting an A4 sheet into a standard US Letter folder will cause the top 0.69 inches (17.5 mm) of the sheet to stick out and cover the indexing tabs. A universal expanding file spans at least 9.15 × 12.25 inches to accommodate both standards.
Can a foolscap expanding file folder hold standard legal size documents?
A standard Foolscap expanding file folder measures approximately 9.84 × 14.76 inches externally and holds 8.5 × 13.5-inch sheets. US Legal documents measure 8.5 × 14.0 inches (0.5 inches longer than Foolscap). While many flexible Foolscap accordion files can accommodate US Legal sheets, dedicated US Legal folders should provide an internal pocket clearance of at least 14.25 to 14.50 inches to prevent edge bending and ensure flap closures latch properly.
What polypropylene thickness is recommended for a retail-grade expanding file?
For commercial retail-ready expanding files, outer covers typically use 0.65 mm to 0.80 mm polypropylene sheet for structural rigidity and shelf presence. Internal pocket dividers are engineered with 0.15 mm to 0.18 mm PP to keep the organizer lightweight and flexible. Gusset sidewalls perform best at 0.12 mm to 0.15 mm thickness to allow smooth accordion folding without stiff resistance or hinge fatigue.
How does Lion Paper ensure batch-to-batch consistency in custom expanding file manufacturing?
Lion Paper enforces standardized SOP work cards, strict AQL sampling inspection standards, and defect mapping across its Jiaxing and Cambodia manufacturing facilities. Ultrasonic welding temperatures, pressure dwell times, die-cutting blade sharpness, and material thicknesses are calibrated before every production run. All products undergo physical load testing, drop testing, and carton stacking validation prior to container loading.
